rail fasteners for Mexican market

rail fasteners for Mexican market

  • Size:RNY rail fastening system / NY-GN rail fastening system
  • Standard:DIN17221, GB/T1222
  • Surface:plain (oiled), color painting, or customers
  • Packing:Woven Bag/Kegs and Pallet/wooden box or upon customers

AGICO Rail supplies rail fastening system and other rail products to Mexican market with high quality and affordatble price. RNY rail fastening system and NY-GN rail fastening system are two hot-sale types of rail fastening system on Mexican markets.
list of rail fasteners for Mexican market:

  1. RNY rail fastening system
  2. NY-GN rail fastening system
  3. Rail shoulder
  4. GN elastic plate
  5. E2009 clip
  6. T bolt
  7. Square plate
  8. Elastic plate
  9. GN plate
  10. Steel Tie plate
  11. E2055 clip
  12. Dog spike 5/8*6
  13. 115RE ANCHOR
  14. 115RE tie plate
  15. 115RE joint bar

1. RNY rail fastening system

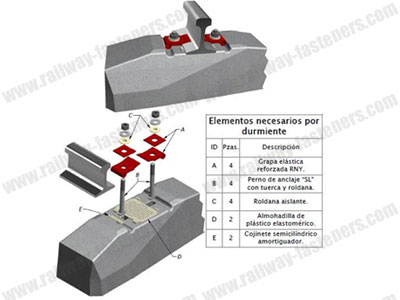

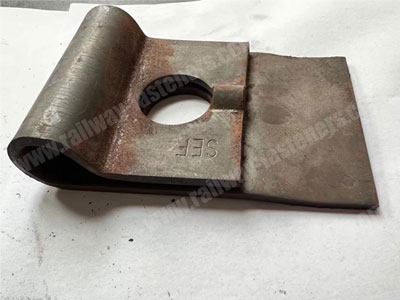

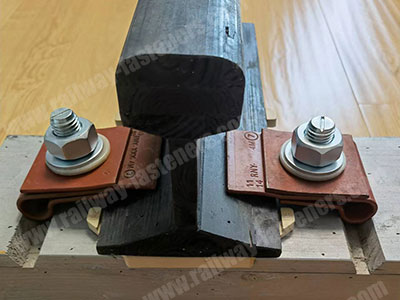

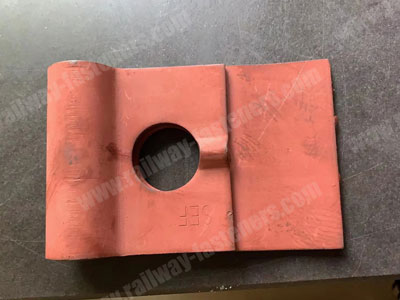

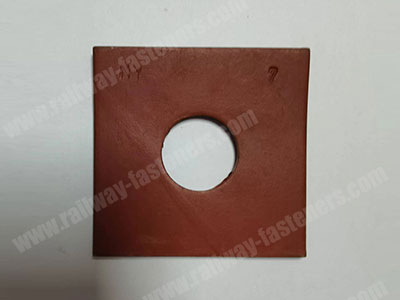

RNY Rail fastening system or RN spring blade rail fastening system, is suitable for 115 RE rail, and it is generally used in rail fastening system for concrete sleeper. RNY rail fastening system includes SL bolts, RNY rail clamp, square elastic plates, NY nylon washers, and rail pad.
RNY-rail-fastening-system-drawingRNY-rail-fastening-systemRN-spring-clampRN-spring-rail-clampNY-platerail-pad-u2sl-boltny-nylon-washer

Technical Parameters of RNY rail fastening system

Part name Item Technical requirement Remark
RNY elastic plate Type 5mm Thickness Application for different rail types
Material 60Si2Mn Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03
Finish Plain oiled, red color painting, or upon request Offered as ordered
Hardness 42-47HRC
Standard refers to DIN17221, GB/T1222

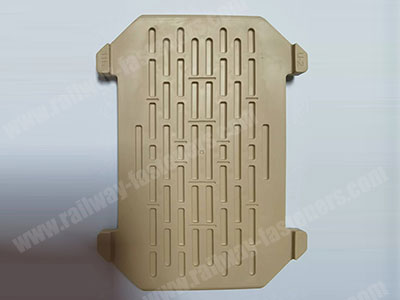

Rail pad U-2 Type Suitable for UIC54, 115RE rails
Material TPE (Thermoplastic Elastomer ) Density: 1.09g/㎝3 Tensile strength: 4.23Mpa Tensile Modulus: 2.97Mpa Melting point: 200-220℃ Shore hardness: ≥40D
Finish Natural

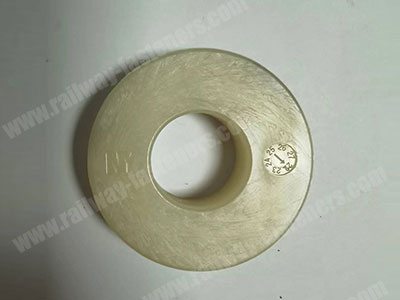

Nylon washer Type NY nylon washer
Material Reinforced Nylon 6 (PA6) Density: 1.15g/㎝3 Tensile strength: 66.3Mpa Elongation: 31.3% Melting point: 228℃ Insulation resistance: ≥2.8×1012Ω Hardness: ≥114HRR
Finish Natural
SL Bolt Type 7/8*186/201
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8.8 Tensile strength: ≥800Mpa Yield strength: ≥640Mpa Elongation: ≥12%
Nut Type 7/8
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8 HV295-353
Flat washer Type 50*23*3
Material Q235 Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P: ≤0.045, S: ≤0.045
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Hardness HV200-300

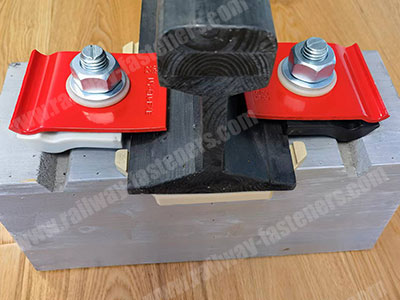

2. NY-GN Rail Fastening System

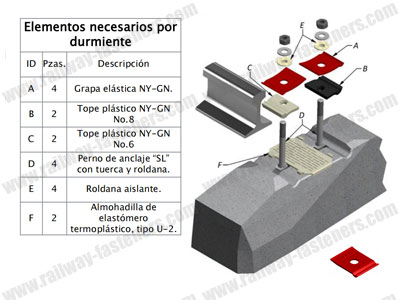

NY-GN Rail fastening system is another hot-sale type of rail fastening system on Mexican market. NY-GN rail fastening system is suitable for 115 RE rail, NY-GN type rail fastening system includes SL bolts, NY-GN elastic plates, NY nylon washers, rail insulator, and rail pad.

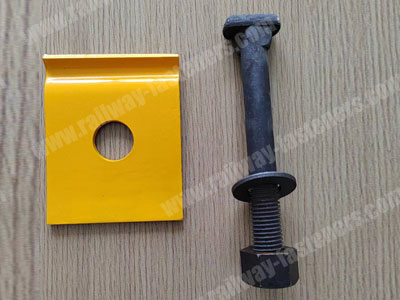

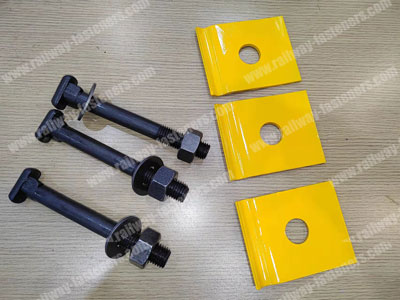

NY-GN-rail-fastening-system-drawingNY-GN-rail-fastening-systemNY-GN-elastic-plateGN-plate-T-BoltGN-plate&T-BoltGN platerail pad U2NY-GN-rail-washer

Technical Parameters of NY-GN Rail Fastening System

Part name Item Technical requirement Remark

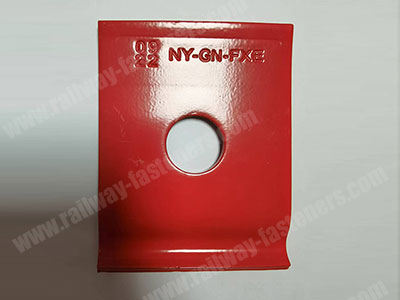

NY-GN elastic plate Type 5mm Thickness Application for different rail type
Material 60Si2Mn Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03
Finish Plain oiled, red color painting, or upon request Offered as ordered
Hardness 42-47HRC
Standard refers to DIN17221, GB/T1222

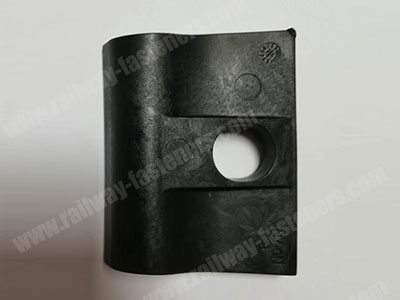

NY-GN Insulator No.6& No.8 Type Suitable for UIC54, 115RE rails
Material Reinforced Nylon 6 (PA6+30%GF) Density: 1.39g/cm³ Tensile strength: 165Mpa Elongation: 3.5% Melting point: 226℃ Insulation resistance: ≥1.9×1012Ω Glass fiber content: 30-35% Hardness: ≥114HRR
Color Black, white or upon request

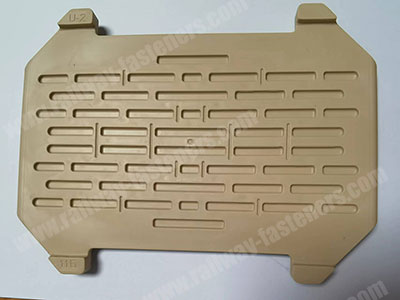

Rail pad U-2 Type Suitable for UIC54, 115RE rails
Material TPE (Thermoplastic Elastomer ) Density: 1.09g/㎝3 Tensile strength: 4.23Mpa Tensile Modulus: 2.97Mpa Melting point: 200-220℃ Shore hardness: ≥40D
Finish Natural

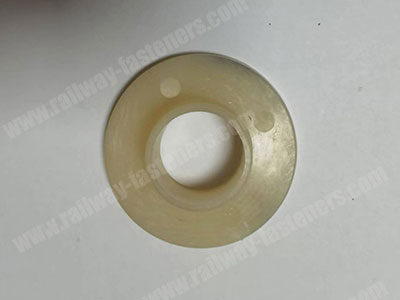

Nylon washer Type NY nylon washer
Material Reinforced Nylon 6 (PA6) Density: 1.15g/㎝3 Tensile strength: 66.3Mpa Elongation: 31.3% Melting point: 228℃ Insulation resistance: ≥2.8×1012Ω Hardness: ≥114HRR
Finish Natural

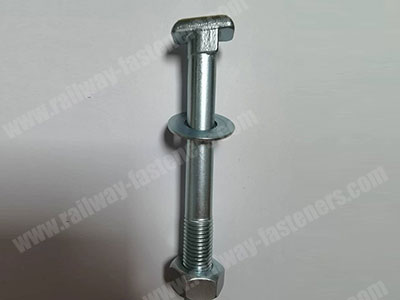

SL Bolt Type 7/8*186/201
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8.8 Tensile strength: ≥800Mpa Yield strength: ≥640Mpa Elongation: ≥12%
Nut Type 7/8
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8 HV295-353
Flat washer Type 50*23*3
Material Q235 Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P: ≤0.045, S: ≤0.045
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Hardness HV200-300
